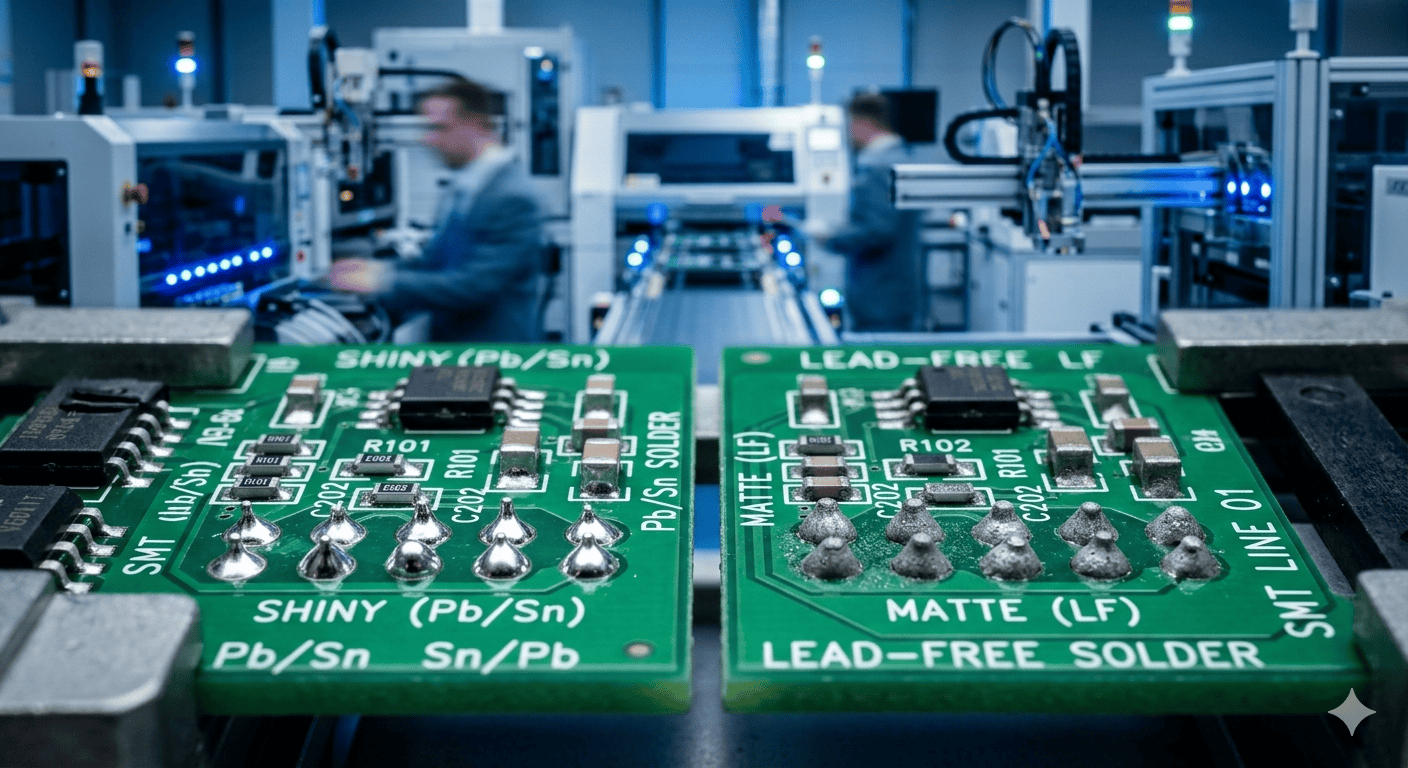

A professional visual comparison of lead vs lead free solder joints in high precision electronic manufacturing

Choose between leaded and lead-free solder by checking the product’s material requirements, applicable market rules and qualified assembly process. Then compare total build cost and reliability evidence for the actual package, board and operating environment. An alloy label alone does not establish compliance or predict field life. For products within EU RoHS scope, lead is a restricted substance, so lead-free solder is normally required unless a specific exclusion or exemption applies.

1. What Is the Basic Composition Difference in lead vs lead-free solder?

Tin-lead and tin-silver-copper alloys have different melting behavior. Sn63Pb37 is eutectic at 183°C; Sn60Pb40 has a melting range rather than the same single melting point. SAC305 is a lead-free alloy with nominal silver and copper contents of 3% and 0.5%, with tin as the balance.

  • Kester lists Sn63Pb37 at 183°C and Sn60Pb40 at 183–190°C in its leaded solid-wire data sheet.
  • Kester’s SAC305 data sheet lists a melting range of 217–219°C.
  • These are alloy melting characteristics, not recommended oven, solder-pot or iron settings.

Why does melting temperature matter for your components?

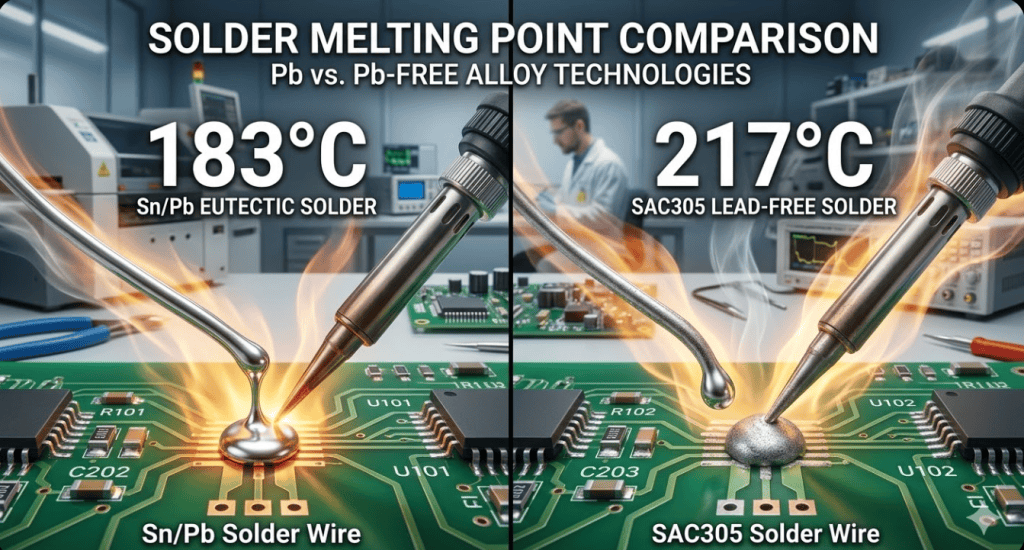

Infographic showing the melting point difference between lead vs lead free solder during reflow soldering
Infographic showing the melting point difference between lead vs lead free solder during reflow soldering

The assembly profile must account for solder-paste instructions, package temperature limits and the populated board’s thermal response. Measure the profile on a representative assembly; copying the alloy melting temperature into an equipment setpoint is not a process specification.

Alloy exampleNominal compositionMelting characteristicInspection note
Sn63Pb3763% tin / 37% lead183°C (Kester)Use joint criteria; shine alone is insufficient
SAC305Tin balance / 3% silver / 0.5% copper217–219°C (Kester)Matte appearance can be normal

2. How Does Cost Impact lead vs lead-free solder Procurement?

Compare the delivered material price together with setup, flux, process control, maintenance, inspection and rework. Alloy composition can affect cost, but the lowest spool or paste price does not necessarily give the lowest accepted-board cost.

  • Material: Obtain a current quote for the specified alloy, flux system and supplied form.
  • Process: Include the thermal profile, throughput and setup required by the actual assembly.
  • Maintenance: Ask what the equipment and consumable manufacturers require for the chosen process.

Are there hidden costs in lead-free production?

If a product must satisfy a material restriction, compare compliant and technically suitable options first. A cheaper alloy that does not meet the released requirements is not an equivalent quotation.

Cost factorLeaded buildLead-free build
MaterialQuote the specified alloy and flux; Sn63Pb37 contains no silverQuote the specified alloy and flux; SAC305 contains about 3% silver
ProcessingLower alloy melting point (Sn63Pb37: 183°C); cost the qualified processHigher melting range (SAC305: 217–219°C); cost the qualified process within component limits
ChangeoverInclude segregation and validationInclude segregation and validation

3. What Are the Health Risks Associated With lead vs lead-free solder?

Components and solder wire illustrating material selection.
Components and solder wire illustrating material selection.

Use the solder and flux safety data sheets to define handling, ventilation, exposure controls and waste procedures. Switching to a lead-free alloy does not remove the need to assess flux fumes and other process hazards.

  • Follow the supplier’s handling and hygiene instructions for the solder and flux.
  • Assess fumes at the process conditions actually used, including hand soldering and rework.
  • Select exposure controls through the workplace risk assessment and applicable local requirements.

How do you protect your assembly team?

Check extraction performance where the fumes are generated, and train operators in the approved handling and cleaning procedure. Do not assume that a generic filter specification is suitable for every soldering process.

Risk assessmentLeaded solder processLead-free solder process
MaterialsSolder contains lead; follow the safety data sheet for handling and hygieneNo intentional lead in the alloy; review solder and flux safety data
Exposure controlsAssess lead handling and flux fumesAssess flux fumes and other process emissions
WasteFollow applicable handling requirementsFollow applicable handling requirements

4. How Does Regulation Influence lead vs lead-free solder Decisions?

The European Commission’s RoHS overview describes restrictions on hazardous substances in electrical and electronic equipment, including lead. Product scope and applicable exemptions need to be checked for the intended market and use. The alloy by itself does not establish finished-product compliance.

  • Identify the product category, destination market and applicable material requirements.
  • Confirm any claimed exclusion or exemption and its validity for the specific product.
  • Retain the required material declarations and supplier evidence with the released build record.

What are the risks of using leaded solder in 2026?

Ask the responsible compliance owner to resolve the material requirement before production. Do not infer a worldwide ban, a universal defense exemption or an approved solder from the product’s industry label.

RequirementScope to establishEvidence to request
EU RoHSApplicable electrical/electronic product and any exemptionMaterial declarations and product compliance records
Other destination requirementsActual market and product categoryReview by the responsible compliance owner
Customer specificationReleased alloy and permitted materialsApproved build specification

5. Why Does Reliability Vary in lead vs lead-free solder Joints?

Solder-joint reliability depends on the alloy, package geometry, joint construction, temperature history and mechanical loading. Compare qualification evidence under relevant conditions instead of treating every leaded joint as shock-resistant or every lead-free joint as brittle.

  • Mechanical loading: Review drop, vibration or bending conditions relevant to the assembly.
  • Material compatibility: Check termination finishes, board finish and the proposed alloy together.
  • Thermal loading: Evaluate the specified cycle profile and failure criteria for the actual interconnect.

How do you ensure high-reliability in lead-free builds?

Use a controlled process and a qualification plan matched to the product. A surface finish or alloy change should be assessed for its effects on the whole assembly rather than treated as a guaranteed reliability improvement.

Reliability questionLeaded buildLead-free build
Mechanical loadingPackage and condition dependentPackage and condition dependent
Thermal cyclingRequires relevant qualification evidenceRequires relevant qualification evidence
Material compatibilityReview finishes and processReview finishes and process

6. What Are the Environmental Impacts of lead vs lead-free solder?

Lead-free solder removes intentional lead from the specified alloy, but it does not make the complete electronic product harmless or establish a lower life-cycle footprint. Consider material sourcing, production, service life and end-of-life handling separately.

  • Record the actual alloy and material declarations for recycling and waste handling.
  • Use the applicable waste process for solder scrap, flux residues and electronic assemblies.
  • Evaluate environmental claims against the product and process evidence, not the alloy label alone.

Is lead-free truly the end of toxic e-waste?

A product can contain other substances that need controlled handling even when its solder is lead-free. Ask the relevant waste handler what information and segregation are required.

Life-cycle issueLeaded buildLead-free build
MaterialsSolder contains lead, a substance restricted under EU RoHSNo intentional lead in the alloy; identify other substances in the product
Waste handlingUse applicable collection and recycling processUse applicable collection and recycling process
Environmental comparisonAssess the complete product and processAssess the complete product and process

7. How Does Wetting Performance Affect lead vs lead-free solder Assembly?

Wetting describes how molten solder spreads over and bonds to a prepared surface. Alloy, flux, oxide condition, surface finish and thermal profile all affect the result. Compare the proposed solder-and-flux system under the intended process conditions.

  • Inspect wetting and joint geometry against the agreed acceptance criteria.
  • Use the paste or solder supplier’s process guidance as a starting point for a measured profile.
  • Investigate paste balance, surface condition and heating when poor wetting or tombstoning occurs.

Can you fix poor wetting in lead-free lines?

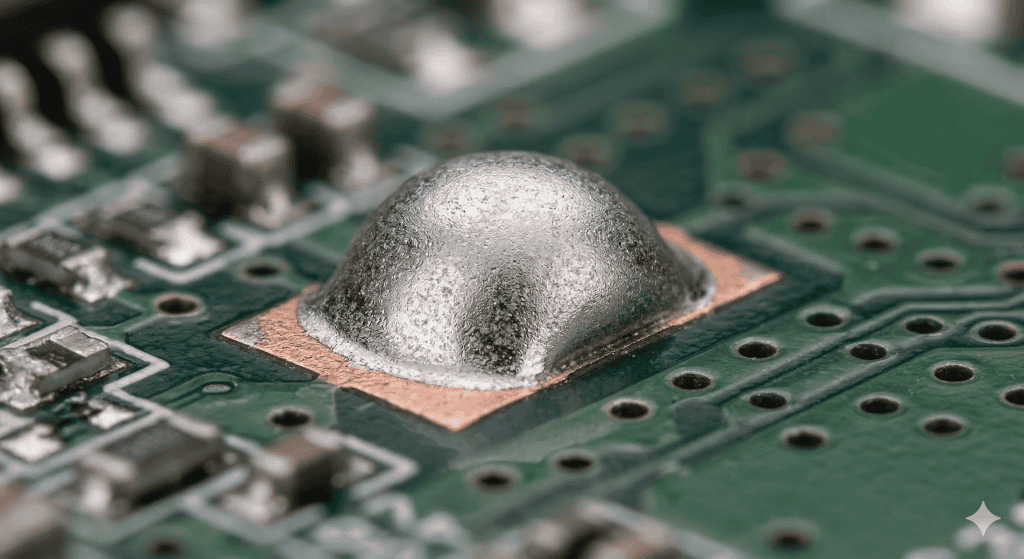

Microscopic inspection of wetting performance for lead vs lead free solder on high density PCB pad
Microscopic inspection of wetting performance for lead vs lead free solder on high density PCB pad

Check the finish, oxidation, flux activity and measured thermal profile before changing the process. An inert atmosphere may be an option where supported by the process qualification; it is not a universal equipment requirement.

Wetting factorWhat to compareEvidence
Alloy and fluxSpecified system and supplier guidanceMaterial data and process trial
Surface conditionFinish, cleanliness and oxidationInspection and traceable handling records
Thermal profileMeasured assembly temperaturesProfile and joint results

8. Why Is Inspection Harder With lead vs lead-free solder?

A matte or textured joint can be normal for some lead-free alloys. Solder shine alone cannot establish acceptance for either alloy family. Use the specified joint criteria and inspection method for the package and assembly.

  • Visual checks: Inspect the relevant joint features rather than classifying a joint by shine alone.
  • Optical inspection: Validate the program and review suspected defects for the actual alloy and finish.
  • Hidden joints: Agree what X-ray or other inspection is needed and what each method cannot verify.

How do you train your QC team for the new standard?

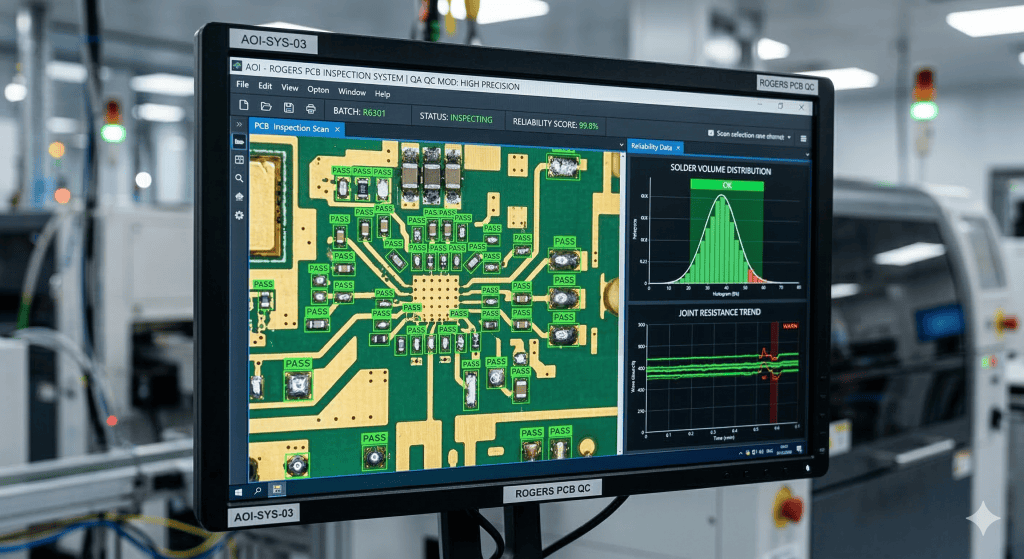

Automated Optical Inspection screen analyzing lead vs lead free solder joint reliability in a PCBA factory
Automated Optical Inspection screen analyzing lead vs lead free solder joint reliability in a PCBA factory

Train inspectors on the applicable acceptance criteria and representative joint images. Keep the criteria, board revision and inspection program traceable so appearance changes do not become inconsistent pass/fail decisions.

Inspection methodLeaded assemblyLead-free assembly
VisualOften a smoother, brighter finish; apply the specified criteria, not shineA matte or grainy finish can be normal; apply the specified criteria
AOIValidate for the actual productValidate for the actual product
X-ray or other hidden-joint methodAgree package-specific coverageAgree package-specific coverage

9. What Equipment Upgrades Are Needed for lead vs lead-free solder?

Check whether the equipment can produce and control the qualified profile for the selected solder system. Review thermal recovery, material compatibility, process segregation and inspection settings with the equipment and consumable suppliers.

  • Reflow equipment: Verify profile control on the populated board.
  • Solder pots and nozzles: Confirm compatibility with the alloy and operating conditions.
  • Material control: Identify solder, tools and work areas to prevent unapproved mixing or contamination.

Is the equipment upgrade a one-time cost?

Include maintenance, consumables, process checks and operator training in the change plan. The required work depends on the existing equipment and the new solder system; a complete equipment replacement is not always necessary.

Equipment areaCheck before releaseRecord
Thermal controlCan it achieve the qualified profile?Measured profile
Process materialsAre alloy, flux and equipment compatible?Supplier guidance and validation
SegregationHow is unapproved mixing prevented?Material and work instructions

10. How to Decide Between lead vs lead-free solder for Your Project?

Release an alloy only after the product requirements and qualification evidence are clear. Give the assembly supplier the approved solder specification, component and board finishes, inspection criteria and rules for rework or substitutions.

  • Market requirements: Confirm the applicable restrictions and any approved exemption before selecting the alloy.
  • Product reliability: Use evidence for the package, finish, joint and operating environment being released.
  • Prototype transfer: Use the intended production materials and process, or document what must be requalified.

Should you ever mix leaded and lead-free?

Mixed-alloy assembly or rework needs an approved compatibility and process assessment. Identify the original solder and component finishes, evaluate the proposed thermal process and verify the resulting joints before releasing the change.

DecisionInput requiredRelease condition
Market accessApplicable scope and material requirementsCompliance owner resolves the requirement
ReliabilityRelevant assembly qualificationApproved criteria are met
Prototype to productionMaterial and process comparisonDifferences are documented and assessed

Send the solder specification, BOM, board and component finishes, assembly data, test requirements and destination market when you contact us today. Ask the supplier to identify any material or process conflict before accepting the quote.

FAQ

  • Q1: Is SAC305 the only lead-free solder option? No. SAC305 is one lead-free alloy; the released specification should identify the alloy and flux system suitable for the product and process.
  • Q2: How should leaded and lead-free builds be kept separate? Use controlled material identification, approved tools and process instructions, and traceability through production and rework.
  • Q3: Can lead-free assemblies be hand-soldered? Yes, with a suitable station, tip, flux and qualified procedure. Use the solder and component suppliers’ guidance and verify the resulting joints.
  • Q4: Is leaded solder banned everywhere? Requirements depend on the market, product scope and any applicable exemption. Check the current requirements rather than assuming one rule covers all electronics.
  • Q5: Does a dull joint mean it is defective? No. Some lead-free joints have a matte or textured finish. Inspect joint geometry and the relevant acceptance features instead of using shine alone.
