How to Choose Si3N4 Ceramic PCB for High-Power Modules

Quick Answer: A Si3N4 ceramic PCB is worth evaluating when the complete power-module stack needs a better balance of heat transfer and resistance to mechanical damage. Compare its actual grade, thickness and copper construction with an identified AlN alternative. Silicon nitride does not guarantee a fixed cycle life, eliminate die-attach stress or become mandatory simply because the application is automotive.

Choosing a Si3N4 ceramic PCB requires a more useful question than which material is “best.” Is the current limitation the temperature drop through the ceramic, a crack near a copper edge, damage during mounting, or fatigue in an attachment layer? Those problems do not all respond to the same material change.

Si3N4 and AlN can both be relevant to power modules. Their usefulness depends on the delivered metallized structure and the rest of the power-module package. Keep that structure identifiable throughout the comparison so material data, thermal calculations and cycling results describe compatible objects.

Table of Contents

1. Ask which part of the module limits the design
2. Compare thickness and conductivity in one calculation
3. Evaluate the metallized structure, not a bare ceramic number
4. Read cycling data without converting it into a guarantee
5. Match the stack to the mechanical and assembly constraints
6. Choose between viable options on measured trade-offs

Ask which part of the module limits the design

Identify the limiting interface or property before selecting a replacement ceramic. A material upgrade has little value when the dominant problem remains elsewhere in the heat or mechanical load path.

Material strength and toughness answer different questions

Flexural strength describes failure in a specified bending test. Fracture toughness concerns resistance to crack extension under a defined test method. Elastic modulus describes stiffness. These properties should not be collapsed into a single claim that a substrate is “twice as durable.”

Kyocera’s ceramic mechanical-property data separates those quantities and identifies measurement methods. That is the level of distinction needed when comparing supplier grades. Test configuration, specimen preparation and the actual flaw population also affect how a material result relates to a finished substrate.

A higher toughness value can support evaluation of a design vulnerable to crack growth, but it does not prove immunity to poor edge quality, concentrated fastening loads or an unsuitable copper pattern. Investigate the location and origin of the damage before attributing it entirely to the ceramic family.

Keep the substrate grade identifiable

Compare named grades and structures. A generic Si3N4 range assembled from several sources can combine conductivity from one grade with strength from another. That fictional combination may not exist in the quoted product. Keep material grade, thickness, metallization and property conditions together.

Request clarification when a quote lists only “high conductivity ceramic.” The drawing should identify the selected material or the agreed performance specification, and the supplier response should state the construction offered. A permitted equivalent needs a defined comparison; it should not be an unrestricted substitution among nitride ceramics.

Use the ceramic material and process overview for the surrounding taxonomy. The decision on this page is narrower: whether a particular Si3N4 stack improves the limiting behavior of a particular AlN alternative without creating an unacceptable thermal, electrical or assembly trade-off.

Compare thickness and conductivity in one calculation

For a first thermal screen, compare thickness divided by conductivity rather than conductivity alone. Then add the real heat-spreading and interface effects before choosing the module construction.

A named material example with explicit assumptions

For one-dimensional steady conduction through a uniform layer, the thermal resistance is R = t / (k × A), where t is thickness in metres, k is thermal conductivity in W/m·K and A is the assumed heat-flow area in square metres. This model assumes uniform properties, ideal contact and no lateral spreading within the modeled layer.

The Rogers curamik product data sheet, ©2026 gives named examples of AlN at 170 W/m·K and Si3N4 at 90 W/m·K at 20°C, with several thickness combinations. Those values are product references, not QueenEMS measurements or guaranteed operating-temperature properties.

For an illustrative calculation, assume a 10 mm by 10 mm uniform heat-flow area. Compare a 0.63 mm AlN layer at 170 W/m·K with a 0.32 mm Si3N4 layer at 90 W/m·K. The area is 0.0001 m², giving approximately 0.0371 K/W for the AlN layer and 0.0356 K/W for the Si3N4 layer.

Illustrative layer	Calculation	Ceramic-only resistance
AlN, 0.63 mm, 170 W/m·K	0.00063 / (170 × 0.0001)	0.0371 K/W
Si3N4, 0.32 mm, 90 W/m·K	0.00032 / (90 × 0.0001)	0.0356 K/W

The thinner Si3N4 layer has a slightly smaller resistance in this deliberately simplified example. That does not mean Si3N4 always transfers heat better. At equal thickness and area, the higher-conductivity AlN value gives the smaller layer resistance. The calculation demonstrates why thickness belongs in the comparison.

What the slab model leaves out

A power die usually does not heat the entire substrate uniformly. Copper spreads heat, neighbouring devices interact, and the heat-flow area can change through the stack. Die attach, braze, baseplate attachment and the cooling interface contribute additional resistance. Their behavior can dominate the small difference calculated for the ceramic alone.

Conductivity also needs to be appropriate to temperature. The room-temperature examples above should not silently become values for an operating module. Use relevant property curves or measured assembly data for a design that depends on a narrow thermal margin.

Repeat the screen with the proposed thickness tolerances and plausible conductivity variation. Report whether the material ranking remains stable or whether the difference is smaller than the uncertainty. A close result should lead to a more representative model or measurement rather than a confident claim based on nominal inputs.

The assumed area deserves the same attention. In the slab model, halving the area doubles the calculated layer resistance; it does not mean the physical die can be shrunk without changing heat spreading. Keep the die footprint and the assumed effective area as separate fields. A model that uses the entire substrate area for one option and the die area for the other is not a fair material comparison. Where the effective area is uncertain, show both constructions under the same area assumptions before adding a more detailed spreading model.

Thinning the ceramic can affect insulation and mechanical behavior. The thermal calculation is therefore a screening tool, not an approval to replace a 0.63 mm layer with a 0.32 mm layer. The chosen construction must meet those other requirements too.

Evaluate the metallized structure, not a bare ceramic number

The semiconductor attaches to a layered construction, not to an isolated material-property entry. Include copper, the bonding interface and surface finish in the comparison.

Copper changes the expansion behavior

A bare Si3N4 CTE near that of a semiconductor does not establish an exact expansion match for the metallized substrate. The amount and distribution of copper affect the composite response, and the die-attach layer transfers load between materials. Temperature interval and constraints matter as well.

The Rogers product data explicitly distinguishes ceramic CTE values from the copper-influenced structure. That qualification is a reason to model the actual metal layers rather than declare zero stress from a bare-material number. Si and SiC also require their own property data; they are not interchangeable reference materials.

Inspect the local structure near the die edge and copper termination. A material substitution can change stiffness while leaving the same stress-concentrating geometry. Where fatigue is the concern, preserve the dimensions and attachment process in the comparison so the result can be attributed correctly.

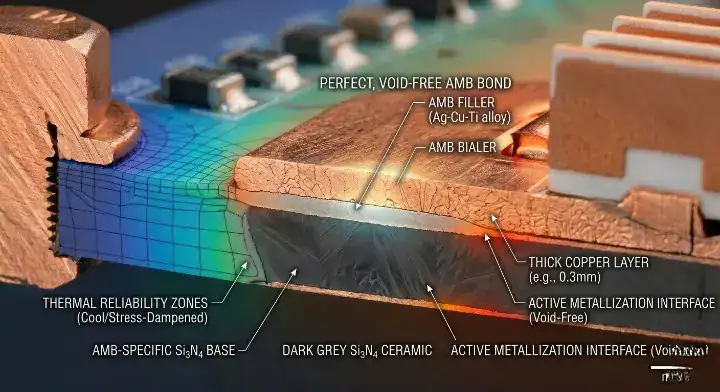

Brazing and surface options belong in the comparison

Si3N4 AMB is an established commercial construction, as illustrated by Rogers curamik Performance Plus. The existence of that route does not justify saying that every other metallization approach is physically impossible or that all AMB products share one peel strength.

Compare bond-test data only with the test conditions, copper thickness and specimen geometry attached. A number in N/mm without a method and construction is not a complete acceptance requirement. Do not convert values from N/cm to N/mm without the factor of ten, or copy a strong minimum from another supplier into the QueenEMS capability column.

Surface finish should suit the attachment and interconnection process. Soldering, wire bonding and sintering can need different surface conditions. A material substitution that preserves the ceramic dimensions but changes the finish is still an assembly change and should be evaluated accordingly.

The ceramic metallization-process comparison explains the route boundaries. For a specific module, require the quoted metal stack and finished surfaces to match the construction used in validation.

Read cycling data without converting it into a guarantee

Use cycling reports to compare constructions under stated conditions. Do not assign AlN a universal failure at 1,500 cycles or Si3N4 a universal survival beyond 3,000 cycles.

Make the comparison like for like

Record low and high specimen temperatures, timing, electrical loading, mounting, sample size and the definition of failure. Environmental cycling and powered cycling can stress different portions of the assembly. A report about one cannot simply be ranked against a result from the other by counting cycles.

Inspect what changed between the two sample groups. A switch from AlN DBC to Si3N4 AMB changes material and process together; it may also change copper, thickness, finish or attachment. Such a test compares complete stacks. It does not isolate a pure ceramic-material effect unless the experiment was designed to do so.

Keep survivors and interrupted specimens visible in the results. A sample that reaches the planned stopping point without a detected defect has demonstrated survival to that exposure. Its eventual life has not been measured. A small group of survivors does not establish zero field failures or a fixed number of vehicle years.

Before accepting a supplier’s plotted comparison, check whether the plotted quantity is failure count, retained strength, thermal resistance or a modeled stress. A smoother curve or lower stress contour is not automatically a measured lifetime improvement. The original report should make that distinction clear.

AEC labels do not qualify the bare substrate

The AEC document index identifies Q100 with integrated circuits and Q200 with passive components. A Q100 temperature grade is not a universal cycling requirement for a bare ceramic substrate. It should not be used as a shortcut that automatically selects Si3N4.

For automotive modules, ECPE AQG 324 provides a relevant module-qualification framework with an identified release. The customer still needs to establish the applicable construction and test plan. Substrate evidence supports that program; it does not replace the qualification of the complete converter.

The material decision becomes stronger when the report identifies the damaged interface and explains why the candidate stack changes that mechanism. It remains weak when the only argument is a broad automotive label, a high-temperature rating or an unexplained lifetime multiple.

Match the stack to the mechanical and assembly constraints

Evaluate how the actual part is handled, joined and mounted. A material with useful toughness can still be damaged by an unsuitable fixture or a concentrated mechanical load.

Mounting and handling still matter

Locate fasteners, support surfaces, large terminals, heavy components and coolant connections. Determine how their loads reach the ceramic. Vibration performance belongs to that installed structure, not only to a coupon cut from the material. Stationary equipment can also experience vibration, transport shock and thermal cycling.

Do not bolt a substrate to a chassis using an arbitrary torque because a datasheet lists high bending strength. Follow the selected module or mechanical assembly specification. Keep the contact surface, fastener sequence and interface material consistent with the validated arrangement.

Inspect the finished edges and holes where loads enter the part. A tougher material may increase tolerance to some defects, but it does not make edge condition irrelevant. The supplier’s drawing and inspection plan should identify those regions without inventing a universal keep-out or mounting rule.

Plan the substitution as a design change

Suppose an AlN-based module stays within its temperature limit but repeatedly develops a ceramic crack beside the same copper termination. In this illustrative investigation, a Si3N4 replacement is one candidate; a copper-layout correction on the existing construction is another. First map the crack origin against the copper edge, substrate edge and mounting contacts. Inspect retained untested specimens with the same method to establish whether comparable damage was already present before the applied stress.

Separate the trial questions. A geometry revision on the original stack asks whether that local feature contributes to damage. An available Si3N4 assembly asks whether a different complete construction meets the requirement. Do not combine both changes in one sample group and describe a favorable result as proof that the ceramic alone solved the problem. Where commercially available stacks prevent a matched material comparison, record the additional copper, joining and thickness differences.

Use the same defined exposure and inspection intervals for candidates being compared, including a baseline construction. Look for new crack locations and attachment damage as well as the original defect. Recheck thermal behavior because the proposed stack must retain the temperature margin that the original already achieved. If the baseline does not reproduce the failure, that run cannot establish the claimed correction. A useful candidate merits further qualification only when the evidence addresses the original mechanism without introducing a different unacceptable limitation.

Check assembly dimensions before ordering that trial. A thinner ceramic can change die height, wire-loop geometry, terminal alignment and the relationship to a lid or cooler. Tooling and inspection references may need revision even when the external outline stays the same.

Compare the complete stack-height tolerance as well as the nominal height. Copper, ceramic and attachment thicknesses contribute to the final interface. A nominally compatible replacement can still move a terminal or lid contact outside its permitted range at a tolerance extreme.

Reconfirm soldering or sintering conditions against the offered finish and thermal mass. An unchanged oven program does not necessarily create the same joint on a different stack. Record the measured process response and the attachment result so any later reliability comparison is based on known starting conditions.

Choose between viable options on measured trade-offs

Select the construction that addresses the demonstrated limitation and satisfies the remaining requirements. A family name should not decide the result before the alternatives are compared.

Observed design issue	Useful comparison	What would justify the choice
Excess ceramic temperature drop	Grade, thickness and heat-spreading model	A representative thermal result with adequate margin
Ceramic damage near a copper feature	Material and geometry alternatives	Controlled testing that addresses the same crack origin
Mounting damage	Fixture, contact and stack stiffness	A validated load path and acceptable finished condition
Attachment fatigue	Complete interconnection construction	Comparable cycling evidence and an applicable life model

Compare costs only after those technical conditions are aligned. Material, metallization, usable panel area, finish, inspection and quantity can all differ between proposals. There is no supported universal Si3N4 premium or minimum automotive warranty saving to insert into the decision.

Separate known costs from uncertain risk reductions. A quote can establish the current purchase difference. Predicting avoided field failures requires actual reliability and application evidence. An unsupported claim that a material saves a fixed amount per warranty event does not make the business case more credible.

Keep the chosen stack, its supporting data and the remaining prototype questions together. This lets engineering explain the selection, purchasing compare equivalent offers and quality verify that the delivered construction matches the tested one. It also makes a future substitution review faster because the original limiting requirement is explicit.

For a Si3N4-versus-AlN quotation, send QueenEMS the candidate thicknesses, copper pattern, die-attach footprint, thermal boundary and any existing failure report. The ceramic substrate quotation service can discuss manufacturing options and the prototype comparisons that belong in the scope. Requested tests, material identity and acceptance conditions should be stated for the actual order.
