High-Precision
Embedded Components PCB Manufacturer
Specializing in Embedded Passive Components. We are a direct Chinese factory offering advanced mSAP processes, premium materials (Ticer, FaradFlex), and turnkey PCBA for radar & satellite.
- Quotes in 2 Hours without Delays
- ISO 9001, RoHS & UL Certified
- 100% Direct Factory (QueenEMS)
Get an Instant Quote
Tired of Yield Issues in High-Density Embedded PCBs?
We know what frustrates hardware engineers and procurement managers. Complex boards demand flawless execution, yet many suppliers fail at the fundamentals.
Surface Space Constraints
Relying heavily on traditional SMT limits extreme miniaturization. Moving passive components to inner layers frees up massive surface real estate, giving you the routing freedom you need.
Low Yield Rate & Failures
Inexperienced suppliers struggle with precise etching tolerances for embedded materials. We utilize advanced vacuum etching to guarantee signal integrity and eliminate scrapped batches.
Slow Quotations & Delays
Trading companies lack the engineering depth to quickly verify your Gerber files. As a direct factory, we review your complex designs instantly, preventing critical launch delays.
Stop letting manufacturing bottlenecks delay your product launch.
Speak to an Engineering ExpertComprehensive Embedded Passives PCB Services
From custom material selection to final turnkey assembly, QueenEMS provides end-to-end solutions engineered for perfect impedance and capacitance control.
Embedded Resistor PCB
We process premium thin-film materials like OhmegaPly to bury resistors internally. Our controlled etching delivers a strict ±5% tolerance, ensuring highly predictable and stable resistance values for your high-frequency lines.
Embedded Capacitance PCB
By utilizing advanced dielectrics such as 3M ECM, we construct embedded capacitance planes that drastically reduce Power Distribution Network (PDN) impedance, effectively eliminating the need for surface decoupling capacitors.
Full Turnkey PCBA
We combine our bare board manufacturing strength with mature SMT/THT lines. This single-source execution prevents component substitution risks and provides a streamlined supply chain from fabrication to final testing.
Ready to consolidate your specialized PCB supply chain?
Request a Service OverviewField-Proven Embedded Components PCB Projects
Review the actual technical parameters of complex embedded boards we have successfully manufactured for top-tier aerospace and telecom clients.
16x16 Phased Array Radar for LEO Satellite Communication

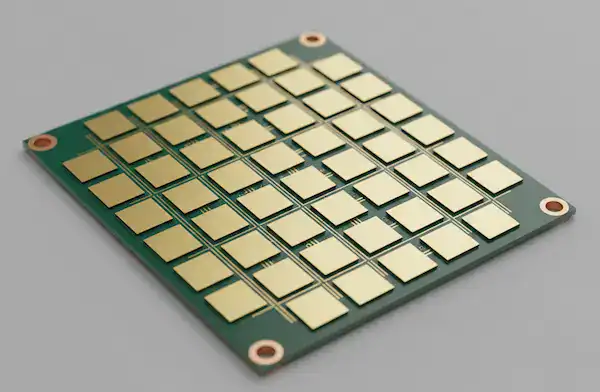

8x8 Phased Array Radar for LEO Satellite Communication

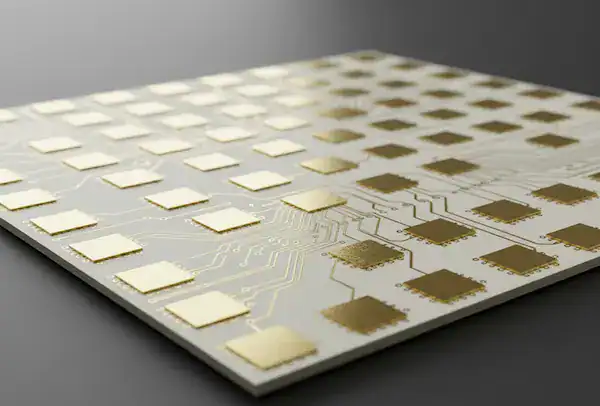

4x4 Phased Array Radar PCB
10x10 LEO Satellite Communication PCB
Want to see if we can manufacture your complex design?
Upload Gerber for Free ReviewAdvanced Process: Semi-Additive Process (mSAP) & Stack-up
To manufacture high-density embedded passive components in PCB, traditional subtractive etching is no longer sufficient. QueenEMS bridges this gap with next-generation processing.
Ultra-Fine Lines (40/40μm)
Implementing the Modified Semi-Additive Process (mSAP) allows us to achieve incredibly fine line widths and spacing. This precision is essential for routing densely around embedded resistor foils without risking signal crosstalk.
Precise Stack-up Control
Embedding materials like Ticer or FaradFlex requires exact lamination cycles. We construct custom stack-up structures to ensure blind and buried vias perfectly connect the embedded passive layers to outer IC pads.
Strict Vacuum Etching
By combining specialized vacuum etching lines with mSAP, we control the exact geometry of the resistor foil, guaranteeing your final resistance values remain flawlessly within a tight ±5% tolerance.
Ensure your embedded layers are perfectly aligned.
Consult Our Process EngineersIndustries Empowered by Embedded Passives
When surface real estate is scarce and signal purity is paramount, top-tier industries turn to our embedded component manufacturing capabilities.
Aerospace & Defense
High-frequency radar and avionics systems require pristine signal transmission. Embedded passives eliminate surface interference, allowing your aerospace designs to perform flawlessly in critical missions.
High-Speed Telecom / 5G
Advanced routers and RF base stations demand strict PDN impedance control. We embed high-capacitance layers to stabilize power delivery, ensuring zero data loss across your 5G telecom networks.
High-End Medical Devices
Implantable devices and precision imaging tools require extreme miniaturization. Removing hundreds of discrete surface components helps you build smaller, more reliable, and life-saving medical equipment.
Need to meet strict industry standards for your project?
Get Tailored Industry SolutionsWhat are the Advantages of Embedded Components in PCB?
Transitioning from surface mount technology to embedded passives fundamentally transforms your board's electrical and mechanical characteristics.
Reclaims Up to 40% Space
By shifting hundreds of resistors and capacitors to the inner layers, you reclaim massive surface real estate. This allows you to integrate more complex active components or drastically shrink the overall footprint of your device.
Improves Signal Integrity (SI)
Surface passives require long traces and vias, creating parasitic inductance and capacitance. Embedded passives sit directly beneath the IC pins, minimizing trace length and dramatically reducing electromagnetic interference (EMI).
Boosts PCBA Reliability
Fewer surface components mean fewer solder joints. Since solder joint degradation is the leading cause of PCBA failure, embedding passives inherently increases the mechanical reliability and lifespan of your final product.
Discover how much space you can save with embedded designs.
Download Technical WhitepaperYour Direct Embedded PCB Manufacturer (No Middlemen)
Dealing with trading companies adds markup and creates technical communication barriers. QueenEMS is a direct factory offering engineering-led support. We don't just take orders; we proactively optimize your stack-ups to guarantee manufacturability.
100+
Advanced Machines
20+
Years Experience
2 Hrs
Fast Quotation
100%
Direct Factory
Zero-Defect Quality Control for Embedded PCBs
Embedded components are completely invisible after lamination. That's why we utilize rigorous non-destructive testing protocols to ensure every internal connection is perfect.
High-Res 3D X-Ray
We peer through the dense multi-layer stack-up to verify the perfect registration of embedded resistor foils and to inspect flawless microvia plating, preventing hidden short circuits.
100% Electrical Testing
Utilizing high-speed Flying Probe testers for prototypes and custom test jigs for mass production, we electrically verify every net to ensure resistance and capacitance values match your design.
IPC-A-600 Class 3
For our military, aerospace, and medical clients, we manufacture and inspect strictly to IPC Class 3 standards. We provide comprehensive cross-section reports and material COAs upon request.
Verify our commitment to zero-defect manufacturing.
Request Sample Inspection ReportsIndustrial-Grade Protective Packaging
Moisture, static, and physical impact can ruin high-end PCBs before they arrive. We ensure your boards reach your assembly line in factory-fresh condition.
Vacuum Sealing
Extracts all air and moisture to prevent oxidation of sensitive surface finishes like ENIG or Immersion Silver, guaranteeing excellent solderability upon arrival.
ESD Shielding Bags
For turnkey PCBA projects, we enclose your order in industry-grade anti-static bags, protecting sensitive micro-components from electrostatic discharge shocks during transit.
Reinforced Export Cartons
We utilize multi-layer corrugated boxes fitted with custom pearl cotton dividers. This structural defense absorbs severe transit impacts, ensuring boards remain perfectly flat.
Expect perfect condition upon delivery.
Learn About Our Global Shipping OptionsGlobal Delivery & Transparent Timelines
We know that project delays can cost you market share. We offer transparent, expedited shipping solutions utilizing our deep partnerships with global couriers to keep your supply chain moving.
Quotation
Direct factory engineers process your Gerber files instantly, so you can lock in budgets without waiting.
Prototyping
Validate your embedded resistor and capacitor values quickly with our low-MOQ rapid prototype runs.
Mass Production
Stable, high-yield manufacturing on our automated mSAP lines ensures consistency across large batches.
Global Express
Secure global delivery directly to your facility using our premium partners like DHL, FedEx, and UPS.
Need urgent delivery for an upcoming project?
Request Expedited ProcessingTrusted by Global Engineering Teams
Engineering leaders worldwide rely on QueenEMS for their high-difficulty embedded component builds. We turn complex designs into risk-free realities.
"QueenEMS provided excellent DFM feedback for our 14-layer radar board. The Ticer embedded resistors performed flawlessly, and their 40um mSAP process saved us a lot of routing headaches. Truly a direct factory experience."
David M.
Hardware Lead, Germany
"Sourcing embedded passives used to be a nightmare with trading companies substituting materials. QueenEMS provided full COAs. Their quality consistency from prototype to mass production is unmatched."
Mark S.
Procurement Manager, Canada
Join the industry leaders who source smartly.
Become Our Next Success Story3 Hidden Traps When Sourcing Embedded PCBs
Embedded technology is expensive and unforgiving. Don't risk your product launch on unqualified suppliers. Here is how QueenEMS protects your investment.
Trap 1: Fake Materials
Some suppliers quote premium OhmegaPly or Ticer but quietly substitute them with cheap domestic alternatives to pad their margins, causing rapid signal degradation.
QueenEMS Solution
We provide authentic raw material certificates (COA) with every shipment. You get exactly what you paid for.
Trap 2: Poor Etching Tolerance
Standard wet etching creates "undercut" issues. For embedded resistors, sloppy etching means the final resistance value wildly deviates from your design intent.
QueenEMS Solution
We utilize specialized vacuum etching lines combined with mSAP, guaranteeing a strict ±5% to ±10% tolerance.
Trap 3: Blind Outsourcing
Trading companies farm out jobs based on price. Your prototype might work perfectly, but the mass production batch fails because it was made at a different, cheaper facility.
QueenEMS Solution
We are a 100% direct manufacturer. Prototypes and mass runs happen on the exact same machines for perfect consistency.
Don't gamble on unverified brokers for high-difficulty boards.
Partner with a Reliable Direct FactoryFrequently Asked Questions
Get quick technical answers regarding our embedded PCB manufacturing process and materials.
What materials do you use for Embedded Resistors?
How do you manage thermal dissipation in embedded component designs?
What are the primary design differences between Embedded Component PCBs and traditional Surface Mount Technology (SMT)?
Are Embedded Component PCBs more expensive than standard multilayer boards?
What is the typical lead time for these high-complexity boards?
What materials do you use for Embedded Resistors?
Can you do mSAP for Embedded Capacitance PCBs?
What is your Minimum Order Quantity (MOQ)?
Do you provide DFM for embedded PCB designs?
Have a specific technical question about your stack-up?
Ask Our Engineering TeamStart Your Embedded PCB Project Today
